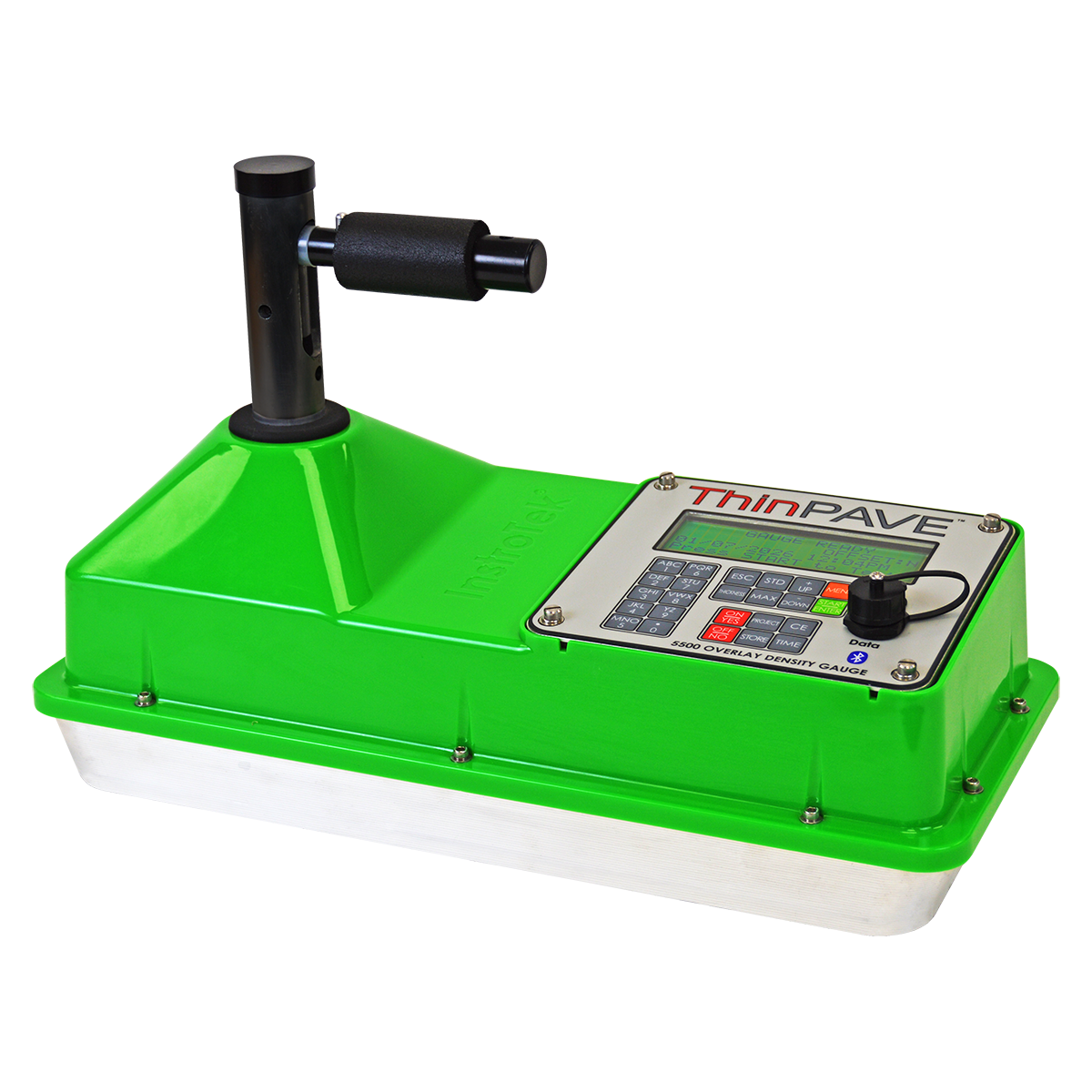

ThinPave™ 5500 Overlay Nuclear Density Gauge

The NEW InstroTek ThinPave™ 5500 is a next-generation nuclear density gauge designed for today’s asphalt pavements. Developed by the original inventor of Thin Layer nuclear gauge technology, the 5500 is the only gauge that reliably measures pavement overlays from 0.5 to 4-inch (12.5–100 mm) thickness.

The ThinPave 5500’s smaller footprint and fully enclosed source assembly improves stability, reduces surface roughness, and prevents debris buildup for more consistent results. The ThinPave also offers flexible data access via the MyGauge™ App or USB port. ThinPave can be equipped with InstroTek’s NukeTrack Gauge Tracking System to easily locate and track the gauge in case of emergency or theft.

With unmatched precision, durability, and smart connectivity, the ThinPave™ 5500 sets the standard for todays nuclear density gauges.

FEATURES

Ultra-Thin Layer Accuracy: Precise measurement of the top 0.5 inch
(12.5 mm) of thin asphalt overlays—a range unmatched by any other gauge.

Smaller, Overall Footprint: New, smaller base reduces surface contact area, minimizing surface roughness effects for more consistent readings.

Closed Source Assembly: No base plate opening, no material contact with the source rod, and no cleaning of the source cavity area—just smoother operation and less maintenance.

Stable & Repeatable Source Indexing: Index/guide tube ensures
consistent rod positioning during every measurement, reducing variability and enhancing repeatability of standard counts and field tests.

Easy Data Access: On-screen layer density plus fast file transfers through the MyGauge App or USB (.CSV).
