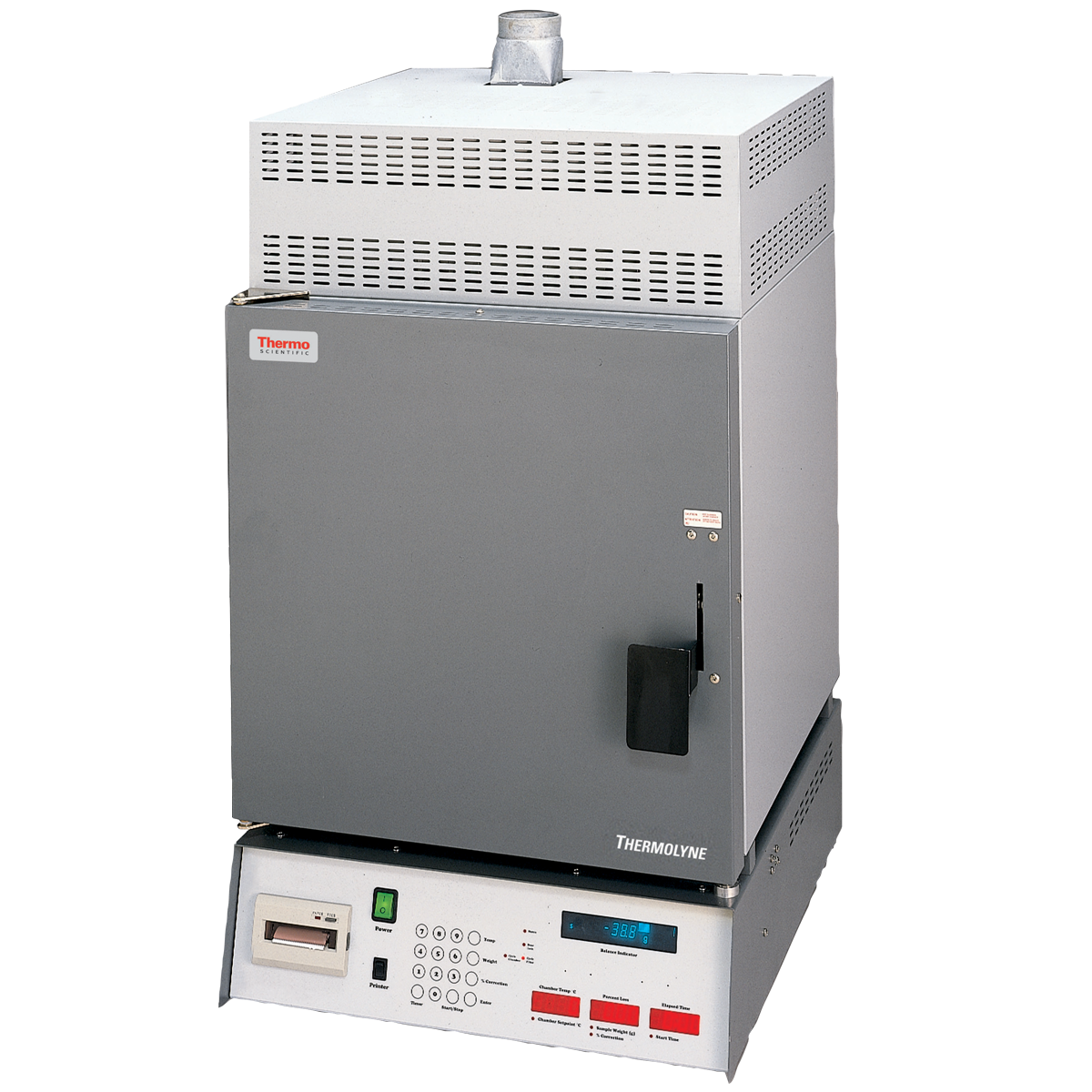

NCAT Asphalt Content Furnace

NCAT Asphalt Content Furnace

The most reliable asphalt content ignition furnace with a proven track record

ASTM D6307, AASHTO T308
Patent #5,558,029

Thermo Scientific NCAT asphalt content furnace accommodates larger sample testing, which reduces labor and costs.

The Thermo Scientific NCAT Asphalt Content Furnace saves time and money by using an environmentally friendly, cost-effective ignition method to determine asphalt content. The Ignition method replaces the costly and time-consuming solvent extraction method by eliminating the cost of solvent and can pay for the cost of the furnace in as little as 26-32 weeks based on solvent cost savings alone

The Thermo Scientific NCAT Asphalt Content Furnace, developed in conjunction with the National Center for Asphalt Technology (NCAT), set the industry standard for determining asphalt content by the ignition method. This system was integral to the drafting and passage of ASTM D6307 and AASHTO T308. A 12-lab round-robin field test was conducted by NCAT exclusively with this furnace. Results and proven performance are documented by NCAT.

Operating Features

  • Asphalt content of bituminous paving mixtures is accurate to 0.11%
  • Accommodates samples up to 5000g
  • Automatic mode: endpoint is detected and software ends the test, prints the results and beeps until STOP is pressed to unlock the door (in accordance with AMRL specifications)
  • Manual mode: endpoint is detected and furnace begins to beep but continues to test until STOP is pressed to unlock the door, results then print
  • Furnace software automatically compensates for weight change due to sample and basket assembly temperature change
  • 24-hour/7-day timer can be programmed to preheat furnace
  • RS-232 port provides data interface with a PC for graphical data analysis

Ask about upgrading your old or new NCAT Furnace with the advanced electronics of the NEW Ignition™ Front Panel
