Fast and Accurate Verification and Diagnostics Device for Your Hamburg Wheel Tracker
Patent No. 10,753,838

The InstroTek HWT-Pro is a comprehensive verification and diagnostic device for the Hamburg Wheel Tracker.  The HWT-Pro can measure and report your machine's deviation from AASHTO T-324 calibration requirements.  The HWT-Pro also follows the recommendations of NCHRP Project 20-07 Task 361 conducted at Louisiana State University.  Wheel load, wheel position, wheel speed, waveform, rut depth, and water temperature can all be measured with the HWT-Pro.  In addition, The HWT-Pro can detect the wheel’s position along the wheel path, its center point, and measure both static and dynamic load.  The dynamic wheel load is compared to a true sinusoidal wave and the RMSE for the equipment is reported.  The HWT-Pro is the only device to give accurate and precise information about your Hamburg Wheel Tracker calibration.

HWT-Pro Spec PC Software

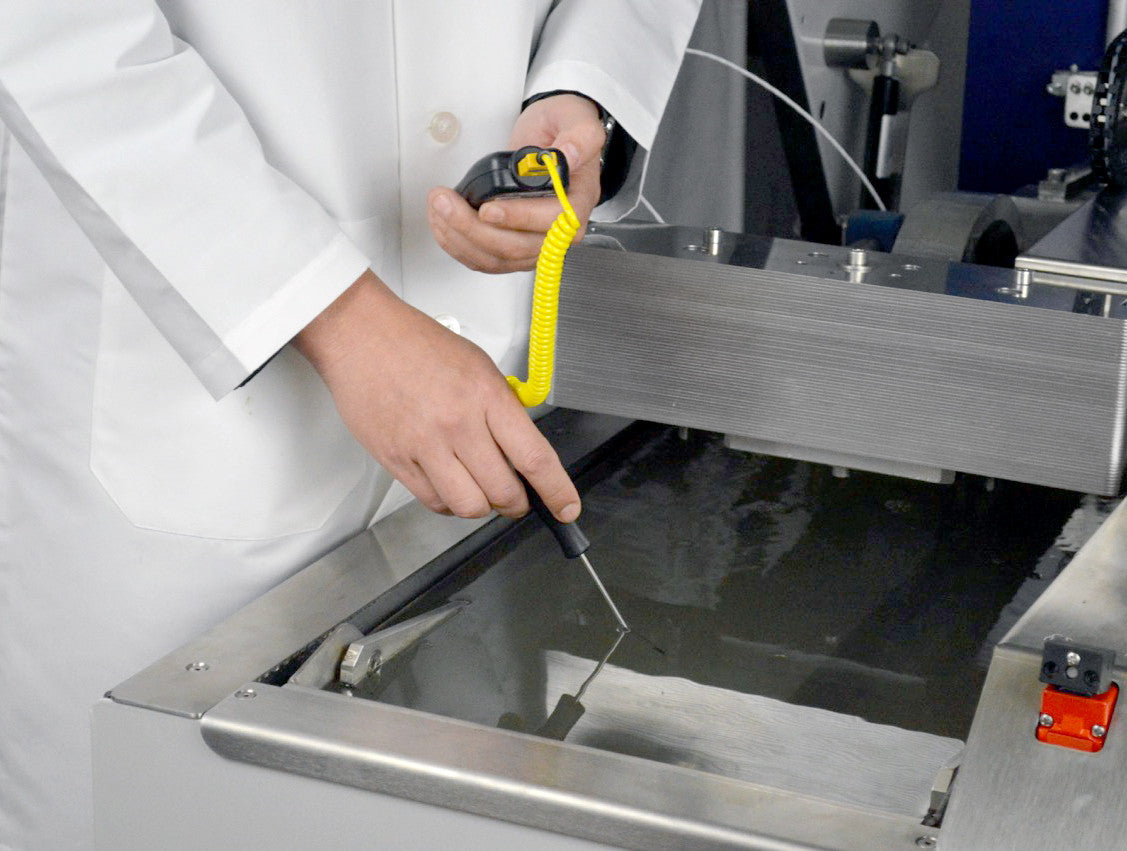

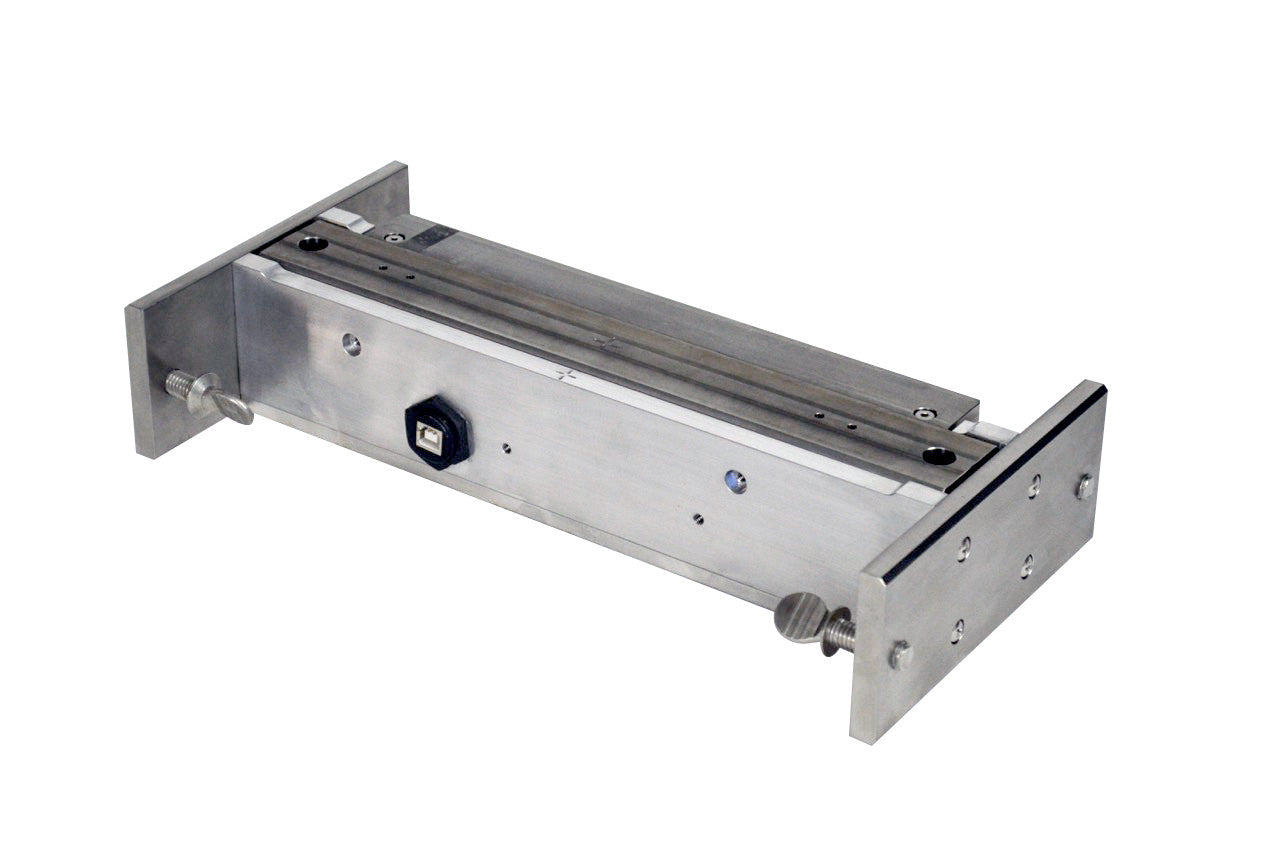

The HWT-Spec PC Software captures all data from the HTW-Pro.  The software leads the user through a series of steps collecting verification data along the way.  The HWT-Pro Load Sensor collects wheel load (static and dynamic), position, speed, and waveform through a USB cable while the HWT-Pro Height Indicator provides the tools to measure LVDT displacement data safely.  Three-point displacement is measured under the wheel for a more realistic displacement verification.  Finally, a NIST traceable temperature indicator is used to capture water temperature at any point along the wheel path.   The HWT-Pro Verification Report provides a pass/fail summary of the Hamburg’s conformity to AASHTO T324 and a graphical comparison of the wheel movement to the sinusoid wave shape.



HWT-Pro Spec Verification Report



 HWT-Pro Kit

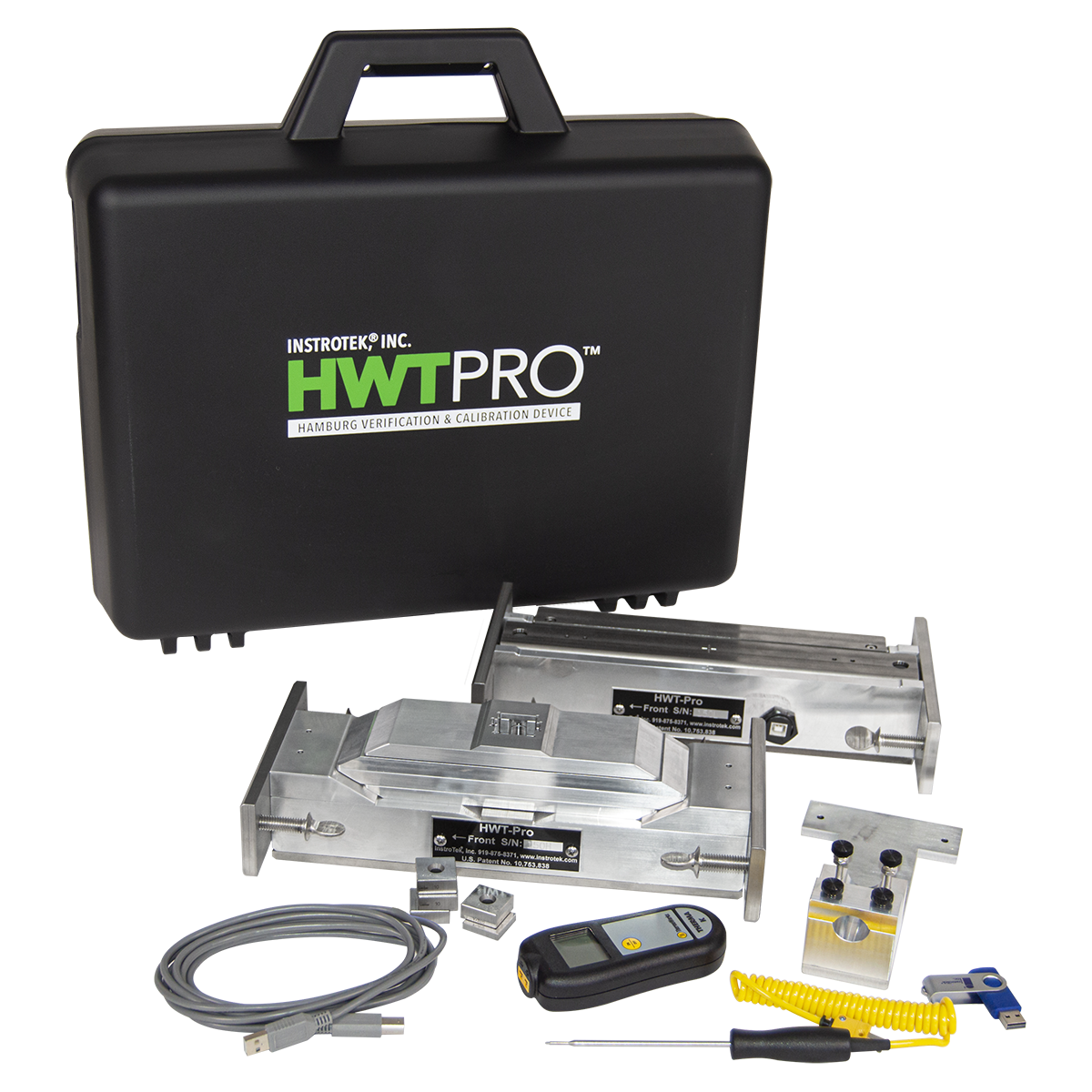

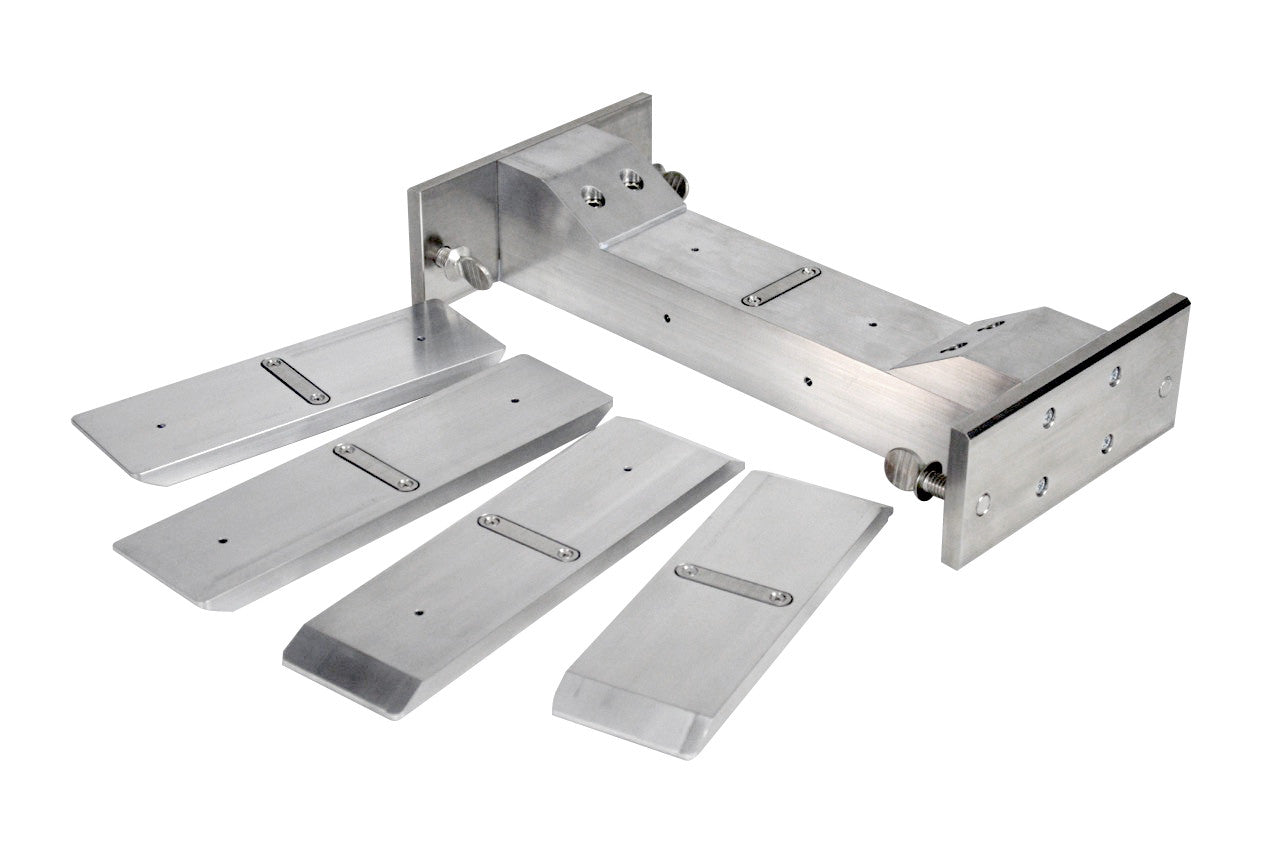

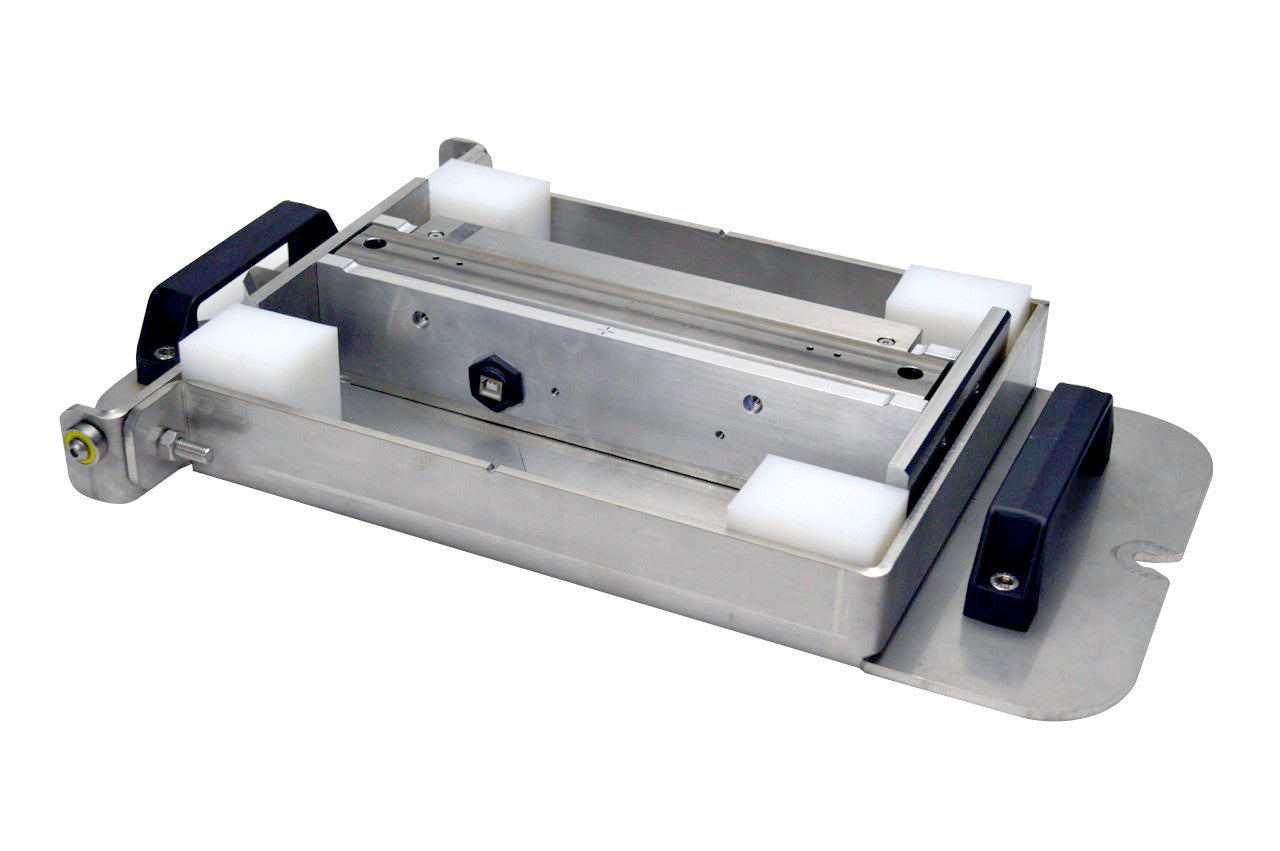

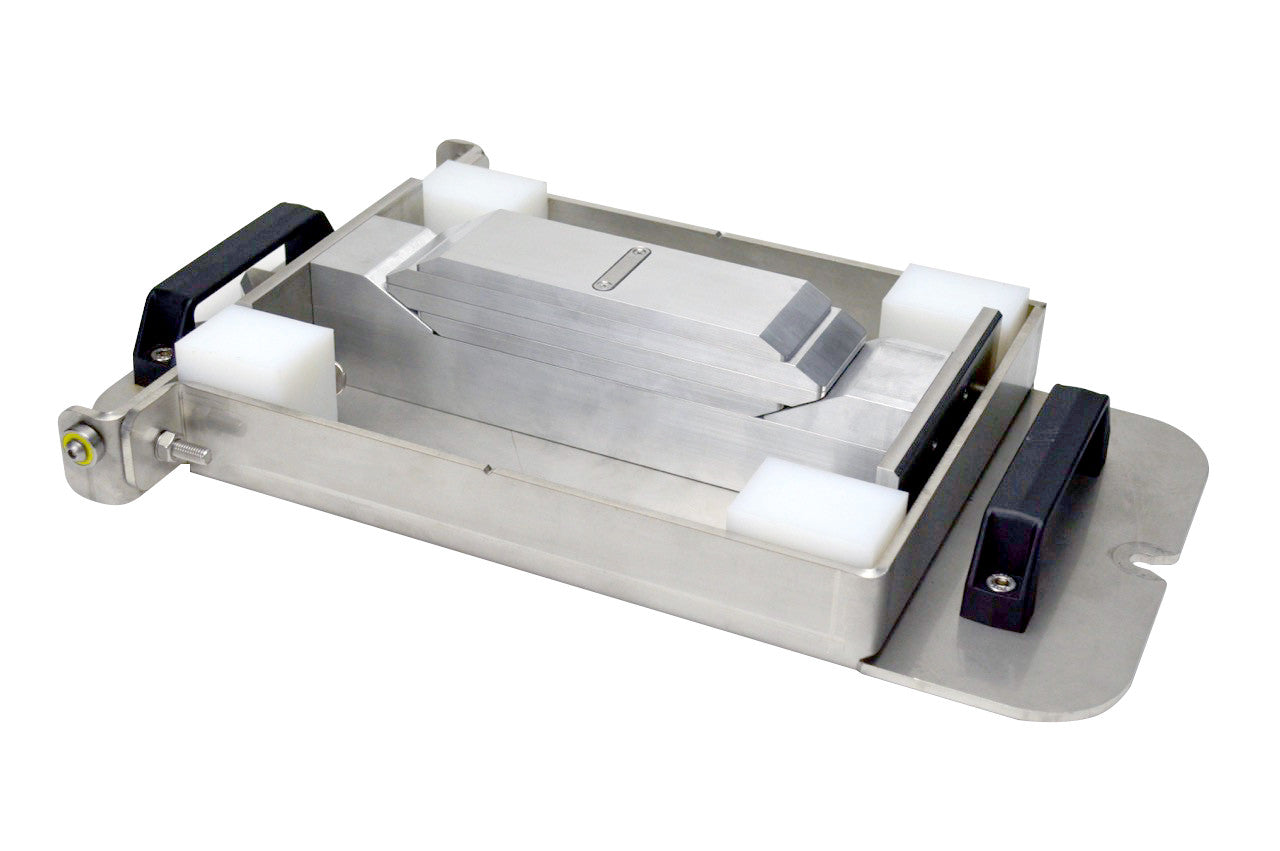

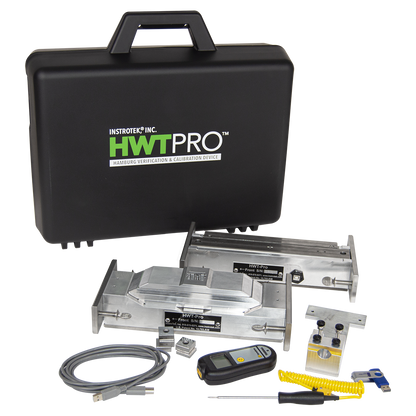

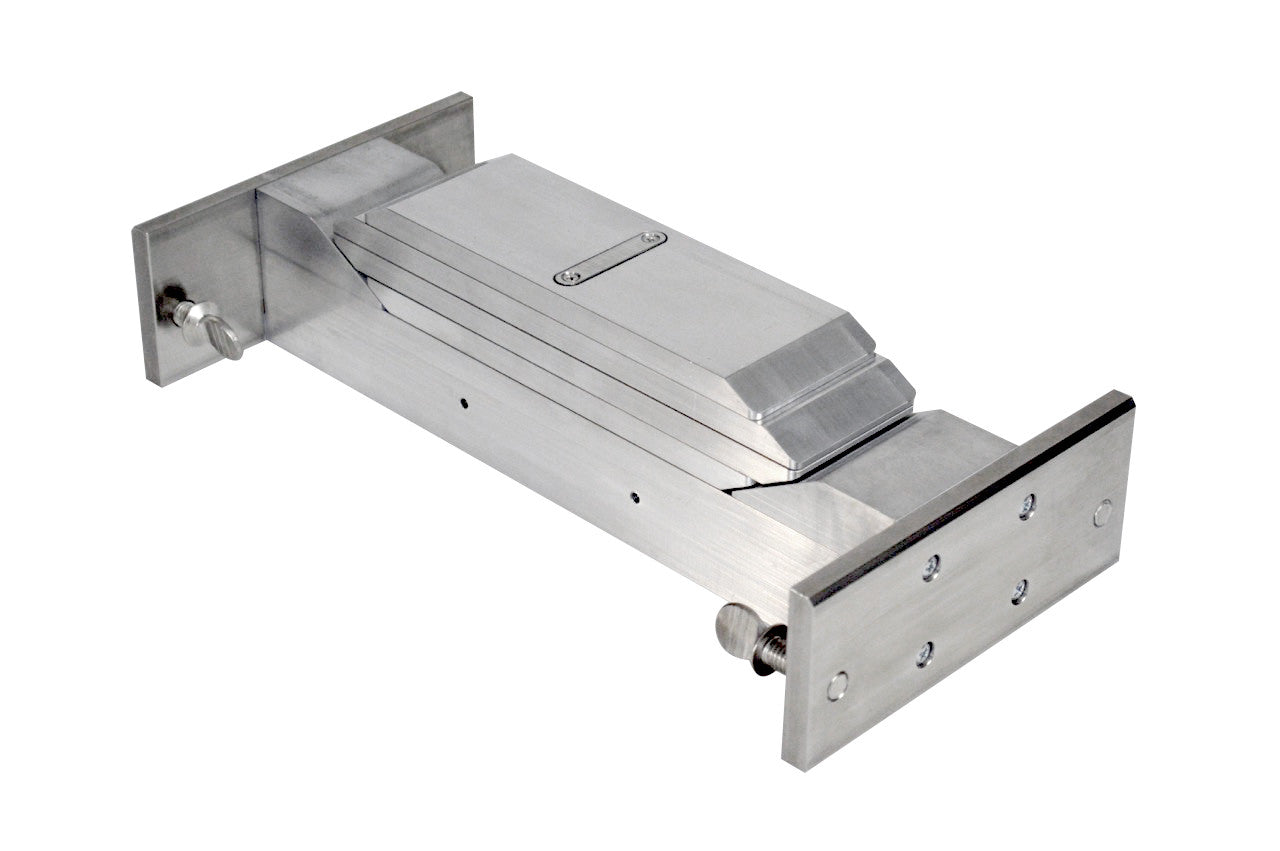

The HWT-Pro consists of a carrying case, load and height verification devices, sample tray centering spacers for different model wheel trackers, NIST traceable temperature indicator, USB cable, and HWT-Spec Software.  The device is made of precision machined stainless steel and quality electrical components. All measurement devices used in the HWT-Pro are NIST traceable and the unit is provided with a certificate of calibration.

The Best Diagnostic Tool for Your Hamburg Wheel Tracker

The HWT-Pro is much more than a verification tool.   Equipment malfunction and non-conformance to calibration standards can often cause issues with test results. The Hamburg wheel tracker has many moving parts that can wear differently over time.  Long periods of non-use before or after the construction season can cause systems to fall out of calibration.  The HWT-Pro allows you to verify all calibration parameters and identify issues with your Hamburg wheel tracker that may affect test results.  The HWT-Pro can track changes in performance over time and provide information that users can use to identify parts that may need replacement over the lifetime of the equipment.

Benefits

  • Verifies all AASHTO T-324 measurement requirements
  • Meets recommendations of NCHRP Project 20-07 Task 361
  • Allows for easy and safe verification of the unit, without having to place hands and fingers close to the wheel and heavy loads
  • Measures wheel load, Wheel center point, waveform, displacement, and water temperature
  • Measures both static and dynamic wheel load
  • Checks accuracy of the wheel motion versus sinusoid and reports RMSE
  • Check calibration quality before a project or after long periods of nonuse
  • Quickly diagnose and trouble shoot issues with your equipment
  • HWT-Spec PC Software easily captures and reports verification results
  • HWP-Pro includes NIST traceability certificates

 *Please contact InstroTek for supported Hamburg Systems
